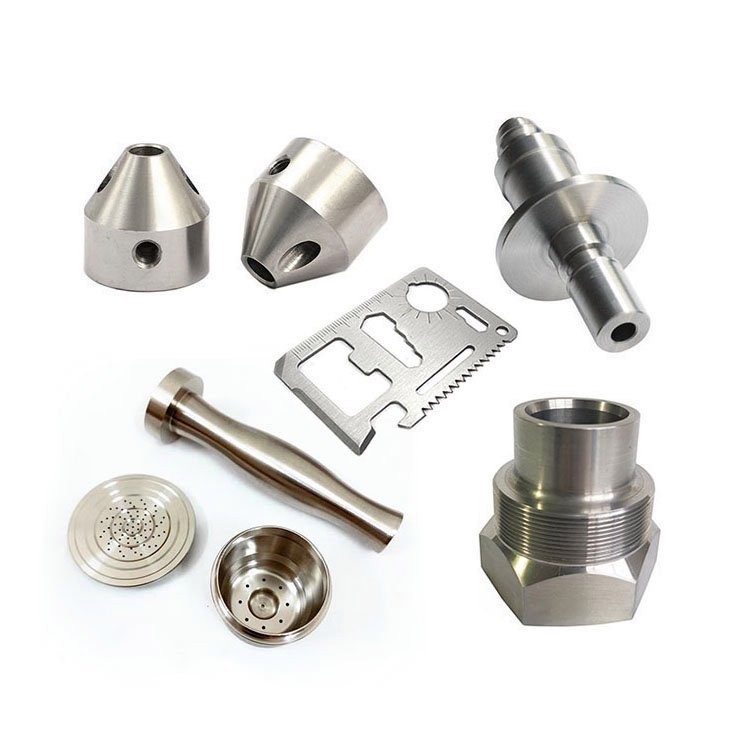

cnc machining stainless steel parts

CNC machining stainless steel parts involves using computer numerical control (CNC) machines to precisely shape and fabricate components from stainless steel material. Here's an overview of the process:

1. Design: Begin by creating a detailed design of the stainless steel part using computer-aided design (CAD) software. This includes specifying dimensions, tolerances, and any required features or surface finishes.

2. Material Selection: Choose the appropriate grade of stainless steel based on the desired properties and applications of the final part. Stainless steel alloys such as 304, 316, or 17-4 are commonly used for their corrosion resistance, strength, and machinability.

3. CNC Programming: Convert the CAD design into a CNC program that guides the machine's cutting tools. This involves specifying the toolpaths, speeds, feeds, and other machining parameters. CNC programming can be done manually or using CAM (Computer-Aided Manufacturing) software.

4. Setup: Prepare the CNC machine by mounting the stainless steel workpiece securely in the machine's vice or fixture. Ensure proper alignment and stability to achieve accurate machining.

5. Machining Operations: The CNC machine will execute the programmed instructions to carry out the machining operations. These operations may include:

   - Turning: Rotating the workpiece while a cutting tool removes material to achieve cylindrical or tapered shapes.

   - Milling: Utilizing rotating cutting tools to remove material and create features such as holes, slots, pockets, or complex contours.

   - Drilling: Creating precise holes in the stainless steel part using drill bits.

   - Tapping: Cutting threads into pre-drilled holes using specialized tapping tools.

   - Reaming: Enlarging existing holes to achieve precise dimensions or surface finishes.

   - Surface Finishing: Optional operations like polishing, deburring, or grinding to enhance the part's appearance and remove any sharp edges.

6. Quality Control: Throughout the machining process, regular inspections are conducted to verify dimensional accuracy, surface finish, and adherence to specifications. Measurements may be taken using precision instruments like calipers, micrometers, or coordinate measuring machines (CMM).

7. Post-Machining: Once the CNC machining is complete, the stainless steel parts may undergo additional processes like heat treatment, plating, or coating, depending on the specific requirements and application.

CNC machining offers high precision and repeatability, making it a preferred method for producing complex stainless steel parts with tight tolerances. However, it's important to note that stainless steel is a hard and challenging material to machine, requiring appropriate tooling, cutting speeds, and feeds to ensure successful results.
